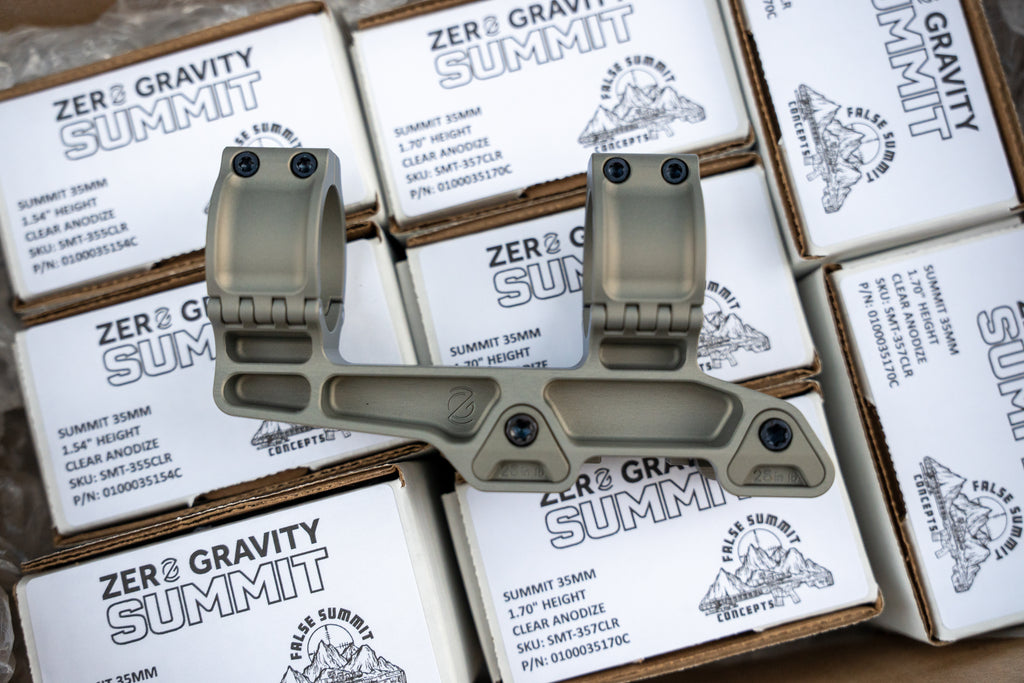

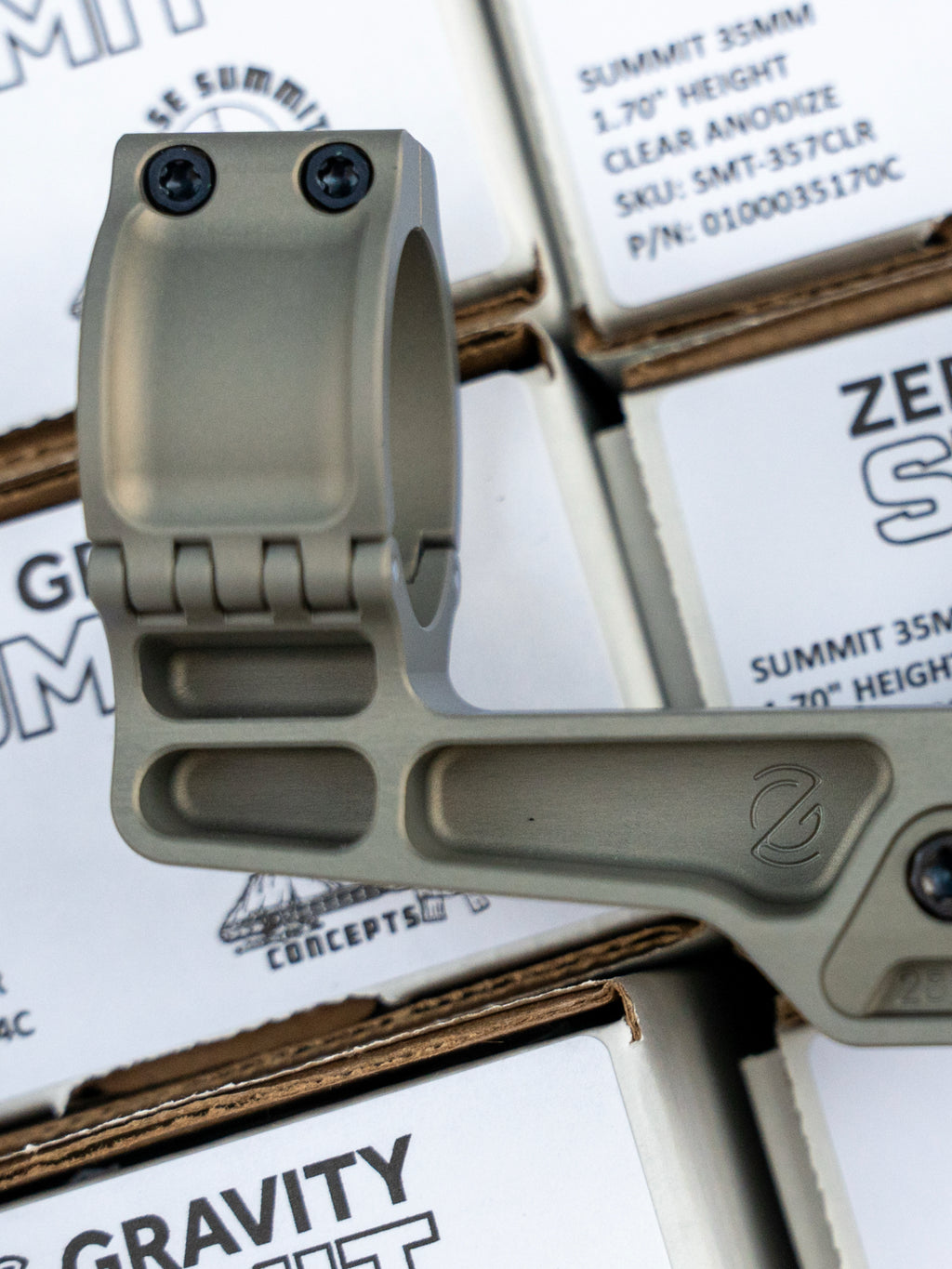

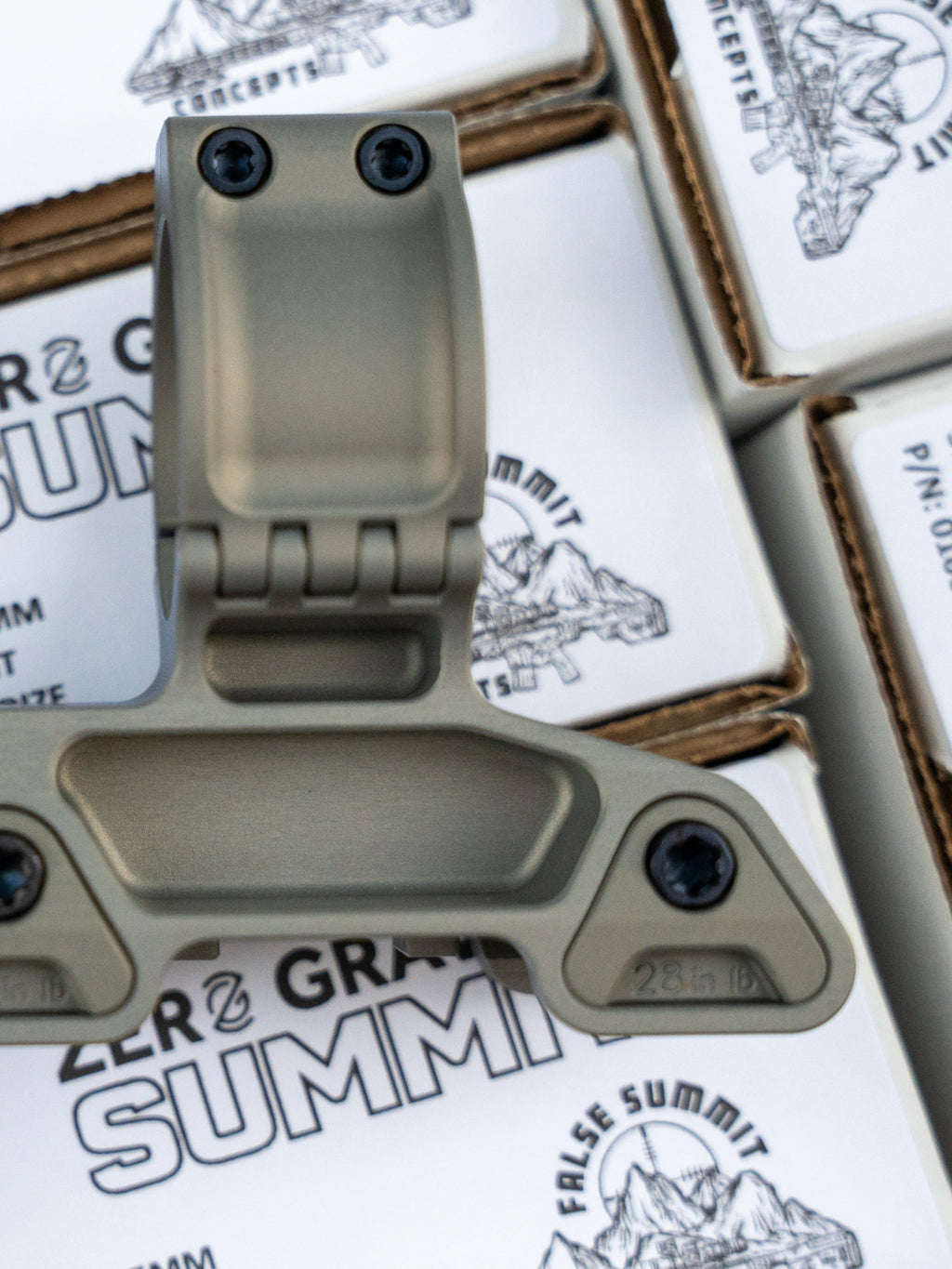

Zero Gravity Summit Mount 35MM
35mm Mounts are designed for the Leupold Mark 5HD series riflescopes.
Stainless Steel Screw-Lock inserts are used for every fastener on the mount for a lifetime of trouble-free use. With these inserts, additional thread locking compound is not needed.
Flush mount rail clamps securely and repeatably attach the mount to the rail and avoid snagging on gear.
Two recoil lugs are machined into the base of the mount to transfer energy from the rifle to the mount without putting unnecessary load on the fasteners or clamps.
7075 T-651 aluminum is used for the entire mount for maximum strength and durability, despite the added cost. 7075 aluminum features 150% of the shear strength of 6061 aluminum, and nearly 200% of the tensile strength.
1.54" optic centerline has been the standard for LPVO's and MPVO's for a while. It is comfortable in most shooting positions and offers a solid cheek weld. It also aligns seamlessly with most Night Vision and Thermal clip-on optics.
Technical specifications
|
Optical Center Height Over Rail |
1.54" |
|
Ring Diameter |
35mm |
|
Weight |
160g (5.6oz) |
|
Cant |
0MOA |
|
Offset |
2.0" |
|
Material |
7075 T-651 Aluminum |
|
Finish |
Clear Ano: Type III Class II Anodize |
|
Driver Sizes |
IP15, IP25 (Included) |
|
Origin |
USA |
|
Optical Center Height Over Rail |
1.70" |
|
Ring Diameter |
35mm |
|
Weight |
159g (5.61oz) |
|
Cant |
0MOA |
|
Offset |
2.0" |
|
Material |
7075 T-651 Aluminum |
|
Finish |
Clear Ano: Type III Class II Anodize |
|
Driver Sizes |
IP15, IP25 (Included) |
|
Origin |
USA |
